2008-2015 BMW 7 (F01 F02 F03 F04)730d 740i Auto RHD Steering Rack Gear Box For BMW 5 GT(F07) 530d 2009-2017 32106793198

32106793198 New Hydraulic RHD Steering Rack Gear Box For BMW 7 (F01 F02 F03 F04) 730d 740i 08-15 BMW 5 Series GT(F07) 530d 09-17

Product Description

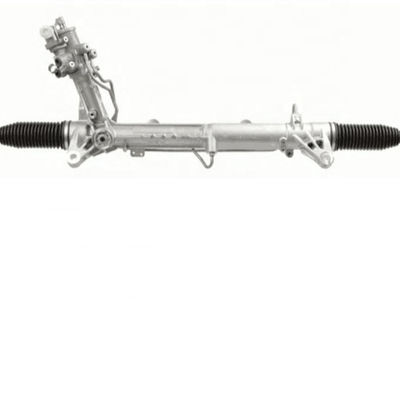

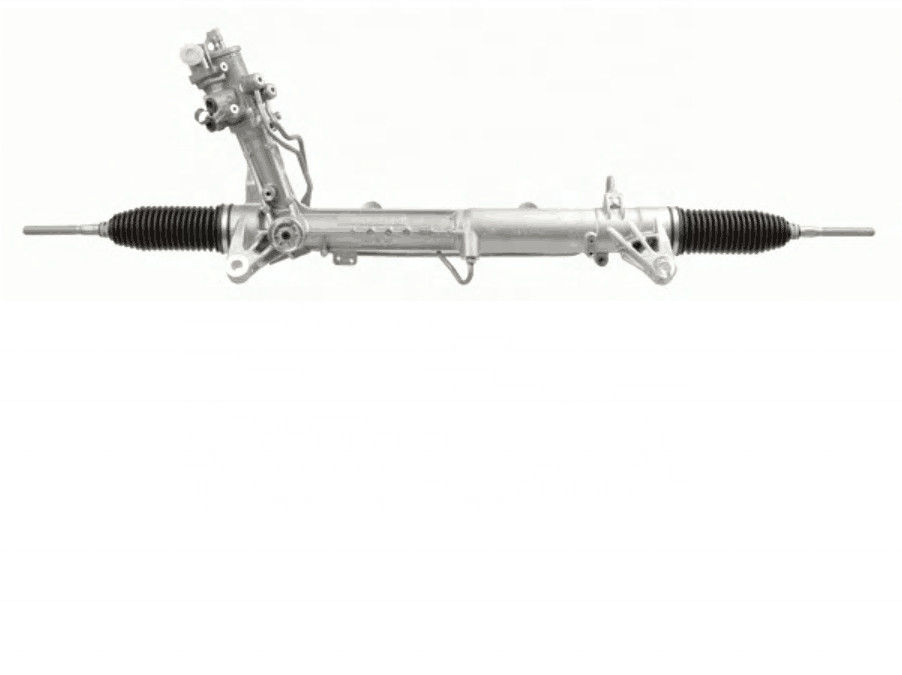

BMW 7 (F01 F02 F03 F04) Auto RHD Steering Rack

BMW 5 GT(F07) 530d Power Steering rack

Common Fault determinatio for steering rack

1. Fault determination of heavy steering

(1), first of all, check whether there is lack of oil, whether the filter element is damaged, whether the pipeline is blocked

(2) when the left and right steering feel is different, should have nothing to do with the pump, first check the steering connecting rod mechanism and steering machine.

(3), the steering process feels uneven power, when heavy and light, first check the steering machine.

(4) Test the output pressure of the steering pump with the help of the pressure detection device.In addition: cold car state at low speed direction is heavy or no rotation, step a few throttle or operation for 2/3 minutes can be eliminated, this is due to the oil viscosity at low temperature is large, the centrifugal force at low speed is small, the rotor blade is not thrown out caused by, is a normal phenomenon.

2. Fault determination of oil leakage

(1) There are old oil stains and no signs of development, which is a normal phenomenon.

(2) It is normal to touch the part with oil without obvious humidity.

(3) Oil leakage at the joint of pump and tubing is usually caused by damage of the sealing ring (pad) of connection loose cargo, tightening or replacing the sealing ring (pad).

(4) If the steering pump leaks oil in other locations and there are signs of development, the steering pump needs to be replaced.

3. Fault determination of abnormal sound of steering system

(1) The sound made when the steering wheel is killed is the sound of the steering pump safety valve opening, which is a normal phenomenon.(Note: Don't beat the steering wheel to one side for more than 10 seconds.)

(2) Air leakage in the pipeline of the steering system (there are bubbles in the oil can at this time) and lack of oil will also cause abnormal sound of the steering pump.

(3) in winter, there is abnormal sound in a short time after the cold car starts, and it disappears after the hot car, which is a normal phenomenon.

(4) abnormal sound does not change with the rotation of the steering wheel, which is generally not a problem with the steering pump.

(5) When the steering is abnormal in one direction or a certain position, it is necessary to focus on checking the steering connecting rod mechanism and steering machine.
